Product Description

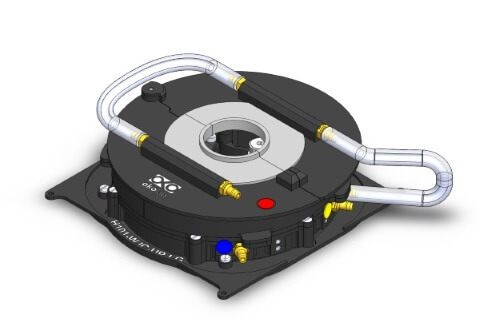

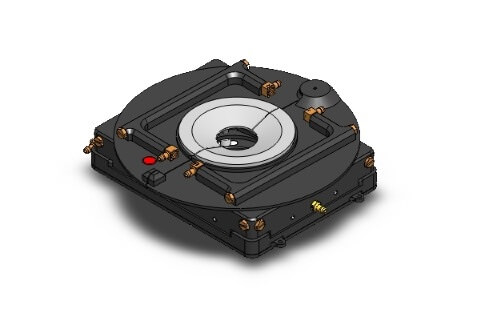

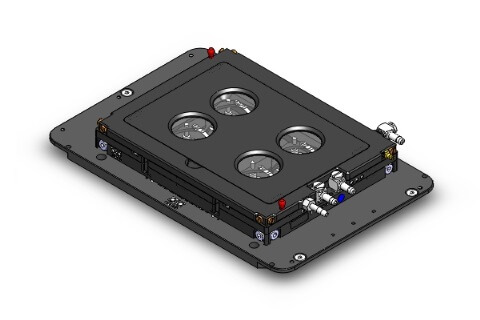

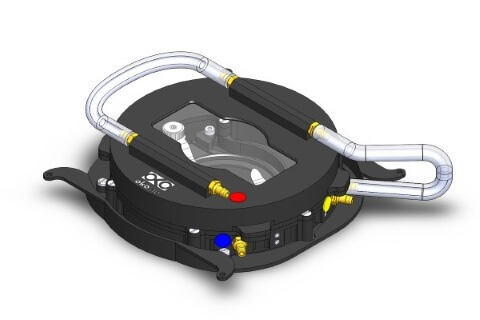

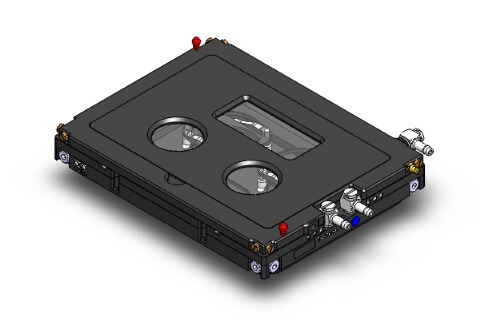

The Water Jacket Incubator provides superior incubation stability above and below room temperature. Water is pumped from a water bath into the base plate and into the lid, which are both Water Jackets.Temperature is measured inside a reference Petri-dish and is controlled by circulating water from a water bath into the Water Jacket Chamber. The Temperature Controller reads the temperature in the reference well and updates the set point temperature of the water bath, ensuring a specimen temperature stability of ± 0.1°C.
- Description
- Returns & Delivery
- You have 14 calendar days to return an item from the date you received it.
- Only items that have been purchased directly from Us.
- Please ensure that the item you are returning is repackaged with all elements.
Description
Specifications
Temperature Range: from -5°C to 60°C.
Temperature Accuracy: ± 0.1°C in sample feedback mode, ± 0.3°C in chamber feedback mode.
Water circulation in the bottom and lid of the chamber.
Inter changeable magnetic inserts allow to host Petri, Slides and MW Plates.
Magnetic locks hold the Petri, the Slides and the MW Plates in the correct position inside the chamber.
Perfusion holes for inlet and outlet of tubes.
Returns and Exchanges
There are a few important things to keep in mind when returning a product you purchased.You can return unwanted items by post within 7 working days of receipt of your goods.
Ship your item back to Us
Firstly Print and return this Returns Form to:
30 South Park Avenue, San Francisco, CA 94108, USA
Please remember to ensure that the item you are returning is repackaged with all elements.
For more information, view our full Returns and Exchanges information.
Product brand
Related Products
Enclosure
The microscope enclosure creates a large volume around the microscope in which temperature is controlled by recirculating warm air.
It is made of polycarbonate panels and encloses microscope stage, nosepiece and objectives. It doesn't affect focus stability. All electronics including EMCCDs, spinning disk confocal etc. are left outside of the enclosure avoiding exposure to 37°C.
The enclosure closely follows the microscope profile and is supported by posts resting on the vibration isolation table.
Temperature controlled heating band
Easy installation around the objective. Fits any objective on the market. Connects to Stage Top Incubator. Single channel controller available for standalone operation.
